Jones Posted August 9, 2019 Report Share Posted August 9, 2019 KCT-19, Accessory Plug Pinout:Pin 1- External mic hook input or system busy output **Pin 2- Mic Ground or Speaker audio mute **Pin 3- Ignition Sense inputPin 4- Receiver Detector outputPin 5- External Mic input or Transmitter Sense out **Pin 6- GroundPin 7- Switched battery + (13.6 volts, 0.75A max)Pin 8- External PTTPin 9- Data Modulation InputPin 10- Horn alertPin 11- Squelch Detect outputPin 12- Speaker Audio outputPin 13- Link Complete pulse output or Speaker mute input **Pin 14- Serial Control data input or Mic Mute input **Pin 15- Serial Control data output orData Control channel signal input orLink complete pulse output orTransmitter Sense output orFoot Switch input ****(all dependent on jumpers or programming) Try hooking +12 Volts to pin 3. Quote Link to comment Share on other sites More sharing options...
nyc787 Posted August 9, 2019 Report Share Posted August 9, 2019 Do you know what color wire is pin 3? Does it mean I have to apply ground wire to pin 6 as well, black wired pin? Quote Link to comment Share on other sites More sharing options...
Jones Posted August 9, 2019 Report Share Posted August 9, 2019 Do you know what color wire is pin 3? Does it mean I have to apply ground wire to pin 6 as well, black wired pin?This un-related page has some photos which may help you. Pin 6 is ground return for external options. you do not need to hook it to anything. http://www.quest4.org/radio/kct-19.htm Quote Link to comment Share on other sites More sharing options...

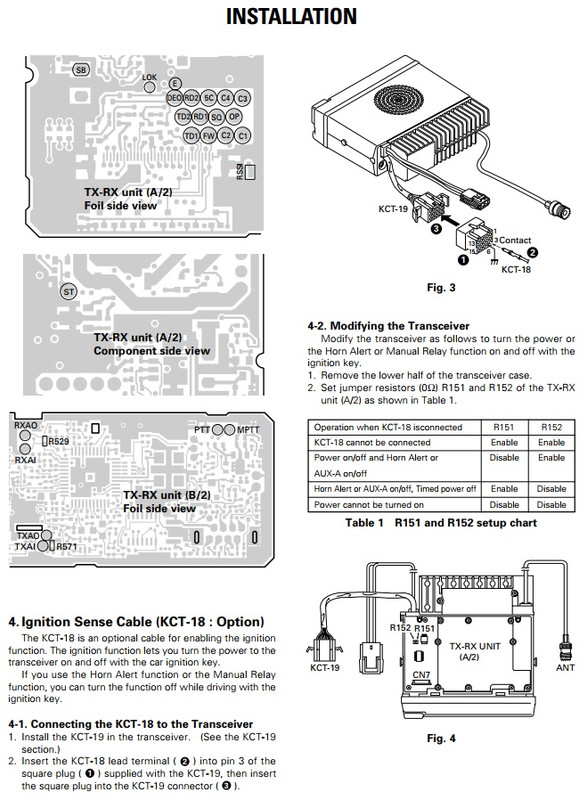

axorlov Posted August 9, 2019 Report Share Posted August 9, 2019 This may be of help: Important: picture below is for pin locations. Do not connect power to pin 7, this pin (and pic) is how to provide switched power from the radio to external hardware. Logan5 1 Quote Link to comment Share on other sites More sharing options...

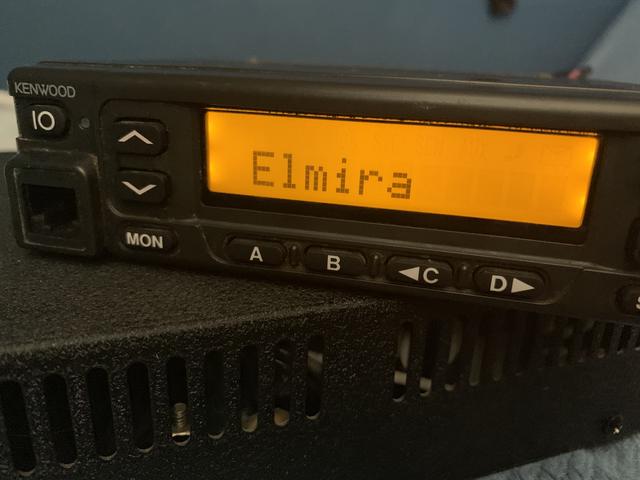

nyc787 Posted August 9, 2019 Report Share Posted August 9, 2019 The issue was the ignition sense. I was able to turn on both radios by applying power to pin 3 but now I’m struggling to figure out how to disable this function. Manual tells me to open up the radio to fiddle with resistors but is there a more easier way like through the KPG49D software or on front panel? It appears the radio is preprogramed and I hope it’s not locked to make changes. Quote Link to comment Share on other sites More sharing options...
nyc787 Posted August 9, 2019 Report Share Posted August 9, 2019 I tried disabling ignition sense from KPG49D but could not find the option in Optional Features. I tried writing new frequencies to radio and they seem to write to the radio but this error message was popping up. Is this compatibility issue a problem or not relevant? Quote Link to comment Share on other sites More sharing options...
axorlov Posted August 10, 2019 Report Share Posted August 10, 2019 Can't help here. My radio is v2, I never had this error message. Quote Link to comment Share on other sites More sharing options...
nyc787 Posted August 11, 2019 Report Share Posted August 11, 2019 Radio still responds to KPG49 program as I was able to change key assignments. I assume ignition sense control is only available for version 2 of this model. So I just have to live with having a 2nd + wire going to accessory pin. I spliced a 2nd + wire from the main power coming from supply and added a paperclip to plug into the pin. Is ground wire into the accessory pin also important or it’s safe without a ground wire? I’ll start a new topic to get help with properly programming this radio as I familiarize myself with KGP49 and the manual. Quote Link to comment Share on other sites More sharing options...
rdunajewski Posted August 28, 2019 Report Share Posted August 28, 2019 Radio still responds to KPG49 program as I was able to change key assignments. I assume ignition sense control is only available for version 2 of this model. So I just have to live with having a 2nd + wire going to accessory pin. I spliced a 2nd + wire from the main power coming from supply and added a paperclip to plug into the pin. Is ground wire into the accessory pin also important or it’s safe without a ground wire?I’ll start a new topic to get help with properly programming this radio as I familiarize myself with KGP49 and the manual. I'll be completely honest, I didn't read all of the posts above... But I recommend you make a connector that plugs into the accessory connector which jumpers 12V to Pin 3 so it will work. You might have to hunt around to find the exact part you need, but you should be able to get it from an electronics supplier online like Mouser or Digi-Key. Then you don't have a paper clip shoved in there which could pop out or worse, jumper the wrong pins and cause a short. Quote Link to comment Share on other sites More sharing options...
